MMO/Ti Flexible Anode | Linear Anode for Pipeline & Tank Cathodic Protection
Our MMO/Ti Flexible Anode (also known as Linear Anode or Flexible Linear Anode) systems represent the ultimate solution for cathodic protection in challenging environments where conventional groundbeds are impractical. This complete packaged system combines advanced MMO technology with optimized carbonaceous backfill, delivering superior performance while significantly reducing installation complexity.
Why choose MMO/Ti Flexible Anode? Unlike first-generation conductive polymer flexible anodes, our MMO/Ti design offers higher current density (up to 900mA/m), longer service life (20+ years), and predictable performance — making it the preferred choice for critical infrastructure projects worldwide.
Optimal Applications
| Application | Key Benefit |
|---|
| Congested Urban Areas | Limited space installations near existing infrastructure |
| Environmentally Sensitive Zones | Minimal environmental disruption during installation |
| Rocky Terrain | Areas where conventional groundbed installation is difficult |
| Complex Pipeline Routes | Protection of pipelines with multiple bends and elevation changes |
| Tank Bottoms | Radial patterns beneath storage tanks, retrofit without excavation |
Multi-Layer Engineering Excellence
MMO Coated Titanium Wire Core
Premium titanium wire with mixed metal oxide coating
Excellent flexibility and corrosion resistance
Consistent current output along entire length
Current density up to 900mA/m (far superior to conductive polymer types)
High-Strength Inner Cable
Provides mechanical strength during installation
Ensures continuous electrical conductivity
Prevents stretching and breakage
Waterproof Connection & Sealing Joint
Factory-sealed connections between anode sections
Complete moisture protection for long-term reliability
Maintenance-free operation
Premium Coke Breeze Backfill
Optimized carbon content for maximum conductivity
Uniform particle size distribution
Low resistivity and excellent chemical stability
Durable Fabric & Woven Mesh Protection
Double-layer fabric and wear-resistant mesh
Protects against mechanical damage during installation
Allows soil moisture penetration while containing coke breeze
Technical Specifications
| Component | Specification |
|---|
| Anode Core | MMO Coated Titanium Wire (1.5-3.0mm diameter) |
| Inner Conductor | Copper Cable (10-25mm² cross section) |
| Backfill Material | High-Purity Coke Breeze (≤0.06μΩ.m resistivity) |
| Outer Diameter | 38±2mm (standard sizes) |
| Standard Lengths | 500m (custom lengths available) |
| Current Output | 52-160 mA per meter (environment dependent) |
| Design Life | 20+ years (up to 50 years in optimal conditions) |
System Configuration Options:
Single-anode continuous runs
Multiple parallel circuits
Custom termination assemblies
Specialized connection kits
Installation Advantages
Trenchless Installation Options
Direct plow-in installation minimizes surface disruption
Suitable for environmentally sensitive areas
Reduced restoration costs and faster project completion
Adaptable to Complex Terrain
Flexible design accommodates curves, bends, and elevation changes
No need for multiple discrete anodes and connections
Continuous protection along entire route
Reduced Installation Time
Pre-packaged system eliminates field assembly of components
Single-pass installation process
Minimal equipment requirements
Uniform Current Distribution
Continuous anode design eliminates "hot spots"
Consistent protection potential along protected structure
Optimized current output per linear meter
Quality Assurance
Material Certifications:
Titanium substrate per ASTM B265 Grade 1
MMO coating per NACE TM0108-2008
Coke breeze per ASTM C709 standards
Fabric mesh with UV resistance certification
Performance Testing:
Individual section electrical testing
Connection joint waterproof validation
Mechanical strength verification
Current output uniformity testing
Project-Specific Solutions
| Application | Solution |
|---|
| Pipeline Protection Systems | Parallel installation along pipeline routes, deep anode bed applications, river crossing and difficult terrain |
| Tank Bottom Protection | Radial patterns beneath storage tanks, perimeter protection systems, retrofit without excavation |
| Infrastructure Projects | Protection of reinforced concrete structures, marine facility applications, industrial plant groundbed systems |
Performance Comparison
| Feature | MMO/Ti Flexible Anode | Conductive Polymer Flexible Anode | Conventional Groundbed |
|---|
| Current Density | Up to 900mA/m | 50-150mA/m | Point source only |
| Design Life | 20-50 years | 5-10 years | 10-20 years |
| Installation | Trenchless | Trenchless | Excavation required |
| Current Distribution | Uniform along length | Uniform along length | Uneven, hot spots |
| Lifetime Cost | Lowest | Moderate | Higher |
Frequently Asked Questions
Q: What is the typical design life of MMO/Ti Flexible Anode systems?
A: Our systems are designed for 20+ years service life (up to 50 years in optimal conditions), with the MMO titanium core providing exceptional longevity and the fabric cover designed to withstand soil stresses.
Q: How does MMO/Ti Flexible Anode differ from conductive polymer flexible anode?
A: MMO/Ti anodes offer much higher current density (up to 900mA/m vs 50-150mA/m), longer predictable life, and better performance in high-resistivity environments. They are the preferred choice for critical infrastructure.
Q: Can MMO/Ti Flexible anodes be installed in rocky soil conditions?
A: Yes, the durable woven mesh provides excellent protection against abrasion, and the flexibility allows the anode to conform around obstacles.
Q: What installation methods are recommended?
A: Both trenching and direct plow-in methods are suitable, with specific guidance provided based on soil conditions and project requirements.
Q: Is this anode suitable for tank bottom retrofit without excavation?
A: Yes, the flexible design allows installation through small access points, making it ideal for retrofit applications without tank excavation.
Ready to Simplify Your Cathodic Protection Installation?
Contact our engineering team to discuss how our MMO/Ti Flexible Anode systems can provide cost-effective, reliable protection for your challenging applications.
| Contact | Details |
|---|
| Technical Support | +86 13891704215 |
| Project Engineering | jessica@nwhengyimetal.com |
Global Market Recognition
The global MMO/Ti Flexible Anode market was valued at USD 216 million in 2024 and is projected to reach USD 307 million by 2032, growing at a CAGR of 5.2%. Our anodes are trusted by industry leaders for infrastructure, marine, and pipeline protection projects worldwide.
MMO Coated Titanium Wire Diameter: 1.5mm or 3.0mm
Outer Diameter: 38±2mm
Current Output: 52mA/m
Lifespan: ≥25 Years
Cable: 1 core ×10mm2 XLPE/PVC or KYNAR/HMWPE
Coke breeze filling: ≥98%
Contact resistance between MMO Coated Titanium Wire: ≤0.01Ω
Weight: 1.2kg/meter
Wire to Cable Connection: Every 3 meters

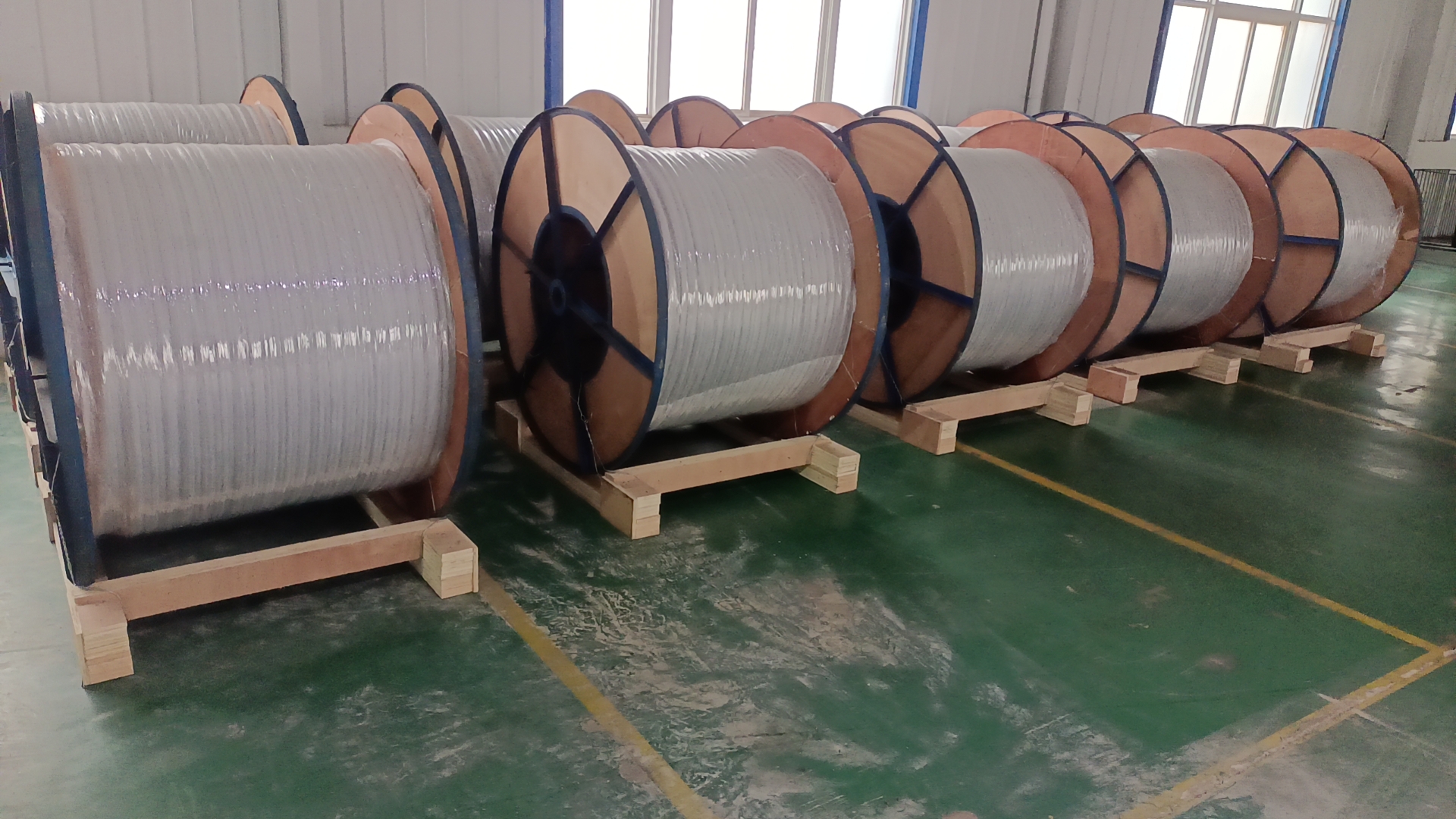

Length: 500 meter per coil
