Our Electrolytic Descaling Device represents the cutting edge in chemical-free water treatment technology. Utilizing controlled electrolysis, the system effectively prevents scale formation in water circuits while maintaining optimal operational efficiency. The compact design integrates seamlessly into existing water systems with minimal installation requirements.
Core Technical Advantages:
Chemical-free scale prevention technology
Compact and robust construction
Automated operation with minimal supervision
Compatible with existing water treatment systems
Environmentally friendly solution

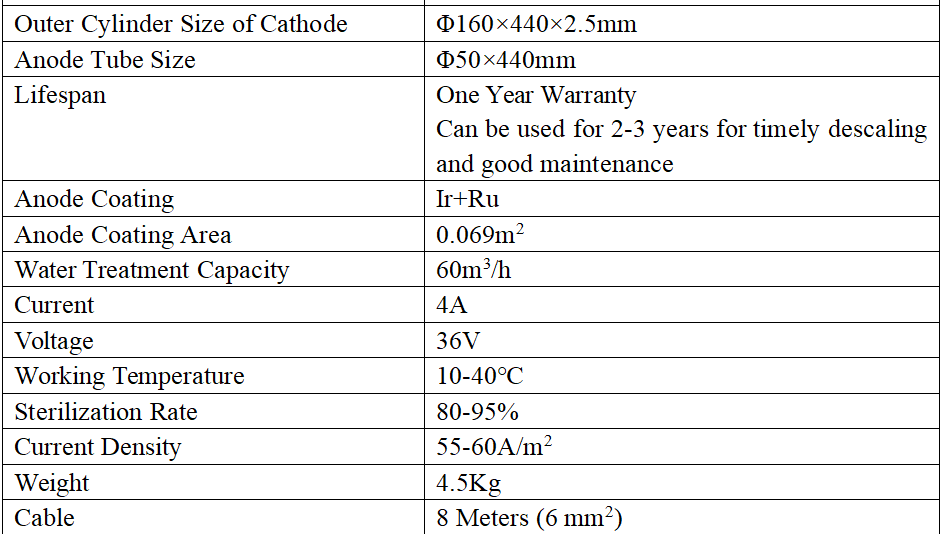

Technical Specifications
Parameter | Specification |
Cathode Chamber | Ø160 × 440 × 2.5mm |
Anode Tube | Ø50 × 440mm |
Flow Capacity | 60 m³/h |
Coating Area | 0.069 m² |
Operating Current | 4A |
Operating Voltage | 36V |
Current Density | 55-60 A/m² |
Operating Temperature | 10-40°C |
Bacterial Reduction Rate | 80-95% |
Weight | 4.5 kg |
Power Cable | 6mm² × 8m length |
Power Supply Unit | 36V/37.5A |
Performance & Efficiency Features
Proven Scale Prevention
Advanced electrolytic technology achieves 80-95% scale prevention efficiency across various water hardness conditions.
Optimal Energy Utilization
Precise current control at 55-60 A/m² ensures maximum efficiency with minimal power consumption (144W operating power).
Broad Temperature Compatibility
Reliable performance across 10-40°C operating range, suitable for most commercial and industrial applications.
Dual-Action Protection
Combines scale prevention with bacterial reduction, maintaining water system hygiene and efficiency.
Compact & Lightweight Design
4.5kg weight and compact dimensions enable easy installation in space-constrained environments.
System Components & Configuration
Installation Requirements:
Suitable for 60 m³/h flow systems
Standard pipe connections
Basic electrical connection
Minimal maintenance access space
Quality Assurance & Compliance
Manufacturing Standards:
ISO 9001:2015 Quality Management
CE Electrical Safety Certification
RoHS Environmental Compliance
IP65 Protection Rating
Performance Validation:
Laboratory tested scale prevention efficacy
Long-term reliability testing
Material compatibility verification
Field performance validation
Technical Support Services
Professional Services:
System sizing and installation planning
Operational parameter optimization
Performance monitoring setup
Maintenance training and support
Documentation Provided:
Installation and operation manual
Maintenance procedures
Troubleshooting guide
Performance monitoring protocols
Ready for Chemical-Free Scale Prevention?
Contact our water treatment specialists to implement this advanced electrolytic descaling solution in your facility.
Water Treatment Experts: +86 13891704215
Technical Support: nwhengyimetal@gmail.com
Note: All specifications subject to technical improvements. Actual performance may vary based on water quality and operating conditions.
